Survival analysis with tidymodels

R/medicine 2024

Hannah Frick

Why survival analysis?

Our data situation

• We want to analyse time-to-event data.

• Side note: “time” can be any continuous variable but
  most often it is indeed time.

• If we don’t know the exact time, e.g., because the event
  hasn’t happened yet, the observation is censored. It is
  incomplete but not missing.

• Time-to-event data inherently has two aspects: time
  and event status. Regression and classification only
  cover one aspect each.

Survival analysis is unique because it simultaneously considers if events happened (i.e. a binary outcome) and when events happened (e.g. a continuous outcome).¹

1. Denfeld QE, Burger D, Lee CS (2023) Survival analysis 101: an easy start guide
   to analysing time-to-event data. European Journal of Cardiovascular Nursing,
   Volume 22, Issue 3, Pages 332–337, https://doi.org/10.1093/eurjcn/zvad023

Why tidymodels?

tidymodels is a framework for modelling and

machine learning using tidyverse principles.

Core coverage

Extendable

Focus on the modelling question,

not the infrastructure for
empirical validation.

Focus on the modelling question,

not the syntax.

• unify: switch easily between models
• consistency:
• composable functions support chunking
  • object (a recipe) to hold all preprocessing, apply it in various places

Case study

Building complaints in NYC

library(tidymodels)
library(censored)

building_complaints <- modeldatatoo::data_building_complaints()
glimpse(building_complaints)
#> Rows: 4,234
#> Columns: 11
#> $ days_to_disposition <dbl> 72, 1, 41, 45, 16, 62, 56, 11, 35, 38, 3…
#> $ status              <chr> "ACTIVE", "ACTIVE", "ACTIVE", "ACTIVE", …
#> $ year_entered        <fct> 2023, 2023, 2023, 2023, 2023, 2023, 2023…
#> $ latitude            <dbl> 40.66173, 40.57668, 40.73242, 40.68245, …
#> $ longitude           <dbl> -73.98297, -74.00453, -73.87630, -73.793…
#> $ borough             <fct> Brooklyn, Brooklyn, Queens, Queens, Broo…
#> $ special_district    <fct> None, None, None, None, None, None, None…
#> $ unit                <fct> Q-L, Q-L, SPOPS, Q-L, BKLYN, Q-L, Q-L, S…
#> $ community_board     <fct> 307, 313, 404, 412, 312, 406, 306, 306, …
#> $ complaint_category  <fct> 45, 45, 49, 45, 31, 45, 45, 49, 45, 45, …
#> $ complaint_priority  <fct> B, B, C, B, C, B, B, C, B, B, B, B, C, C…

Building complaints in NYC

building_complaints <- building_complaints %>%
  mutate(
    disposition_surv = Surv(days_to_disposition, status == "CLOSED"),
    .keep = "unused"
  )

• Surv = response
• modify response outside of recipes

Split the data

set.seed(403)
complaints_split <- initial_split(building_complaints)

complaints_train <- training(complaints_split)
complaints_test <- testing(complaints_split)

Building complaints in NYC

A first model

cox_spec <- proportional_hazards() %>%
  set_engine("survival") %>%
  set_mode("censored regression")

rec_other <- recipe(disposition_surv ~ ., data = complaints_train) %>%
  step_unknown(complaint_priority) %>%
  step_novel(all_nominal_predictors()) %>%
  step_other(community_board, unit, threshold = 0.02) %>%
  step_rm(complaint_category)

cox_wflow <- workflow() %>%
  add_recipe(rec_other) %>%
  add_model(cox_spec)

complaint_category closely linked to unit, several categories are handled by one unit only

Resampling our first model

complaints_rset <- vfold_cv(complaints_train)

survival_metrics <- metric_set(brier_survival_integrated, brier_survival,
                               roc_auc_survival, concordance_survival)
evaluation_time_points <- seq(0, 300, 30)

Resampling our first model

set.seed(1)
cox_res <- fit_resamples(
  cox_wflow,
  resamples = complaints_rset,
  metrics = survival_metrics,
  eval_time = evaluation_time_points
)

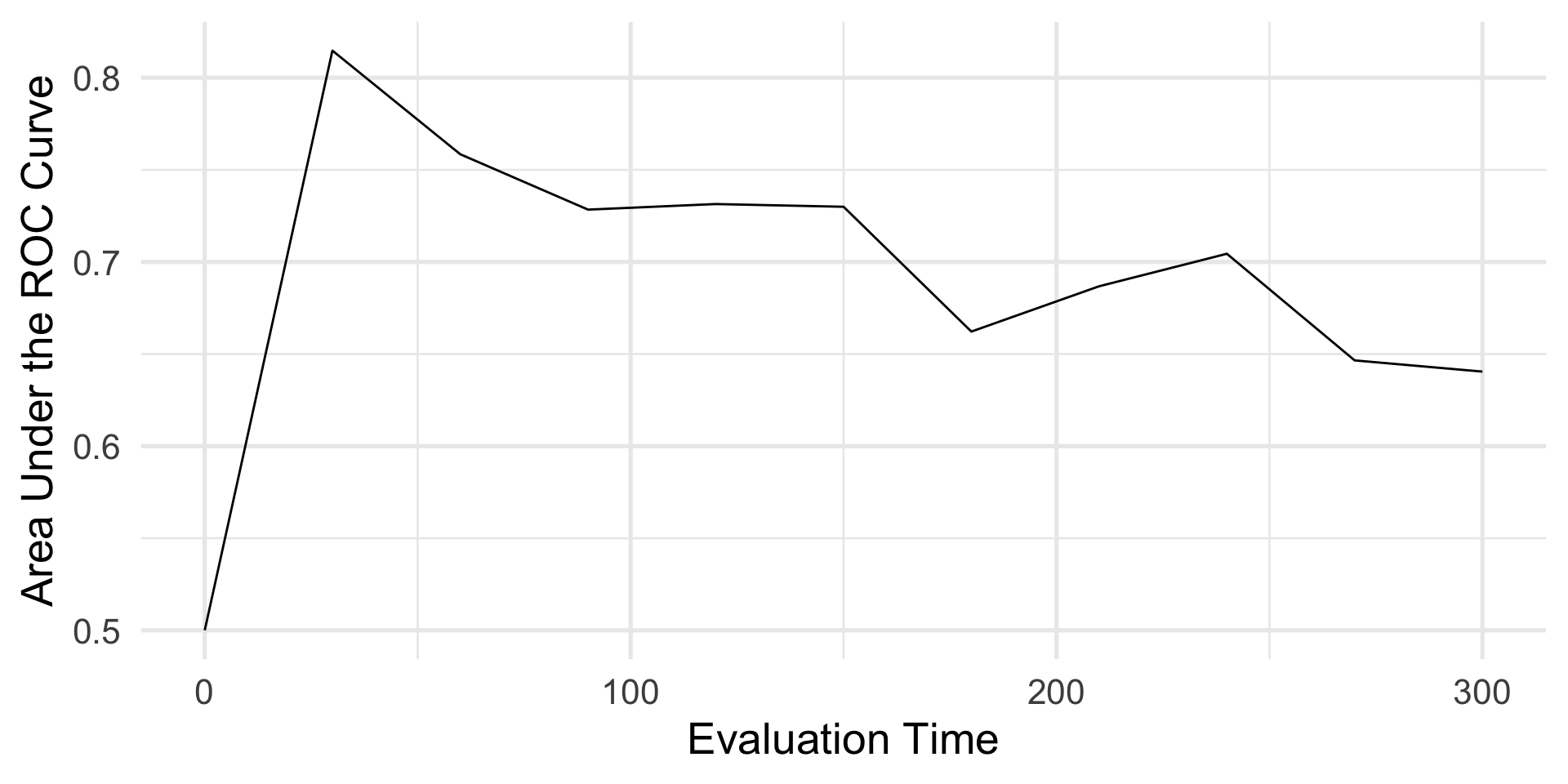

Separation over evaluation time

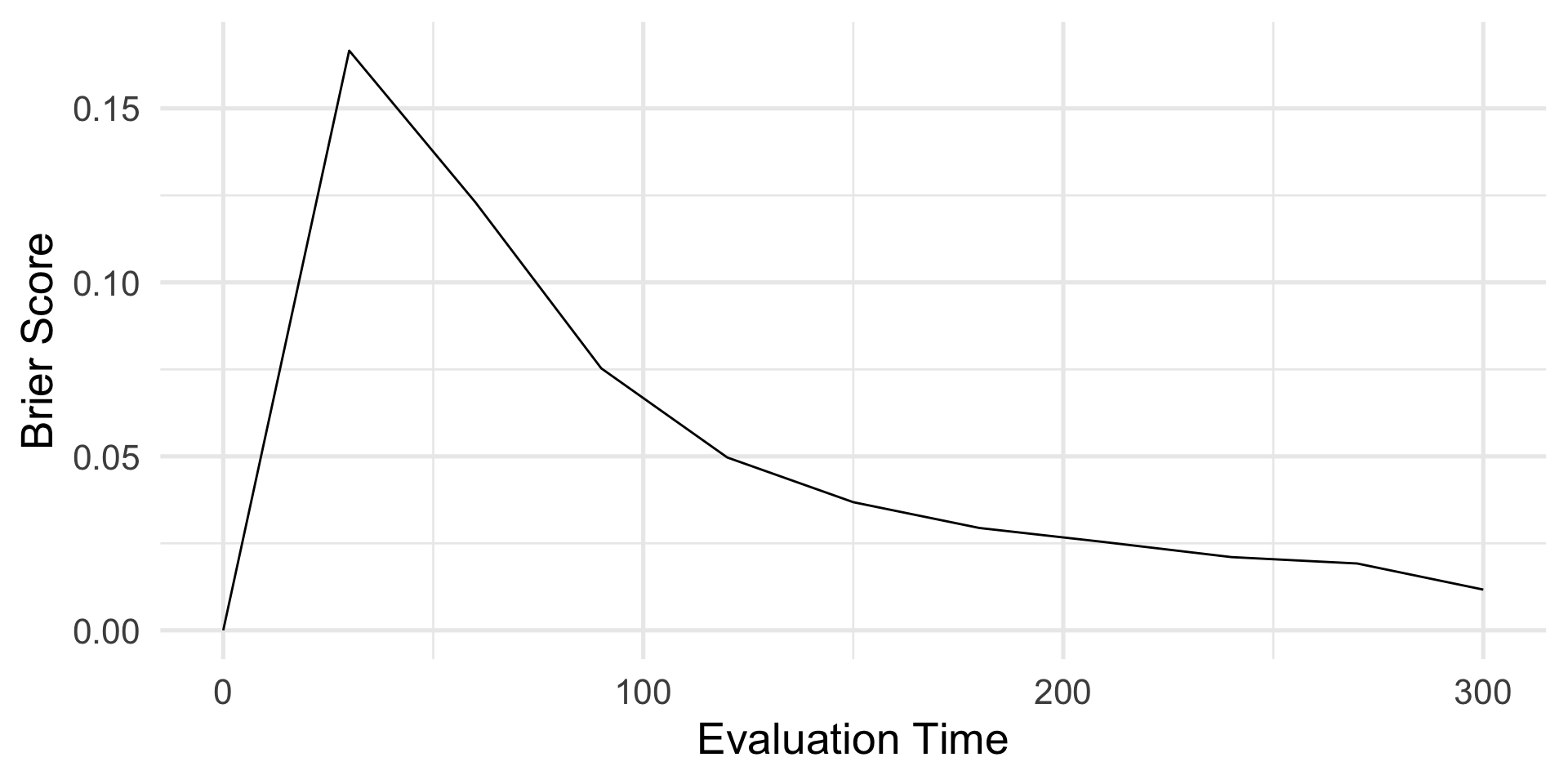

Calibration over evaluation time

Integrated Brier score

collect_metrics(cox_res) %>%
  filter(.metric == "brier_survival_integrated")
#> # A tibble: 1 × 7
#>   .metric           .estimator .eval_time   mean     n std_err .config
#>   <chr>             <chr>           <dbl>  <dbl> <int>   <dbl> <chr>
#> 1 brier_survival_i… standard           NA 0.0552    10 0.00354 Prepro…

Let’s go further

Alternative modeling strategy

Instead of lumping factor levels together in a "other" category,

let’s try out regularization on dummy variables.

Switching to regularized model

cox_spec <- proportional_hazards() %>%
  set_engine("survival") %>%
  set_mode("censored regression")

rec_other <- recipe(disposition_surv ~ ., data = complaints_train) %>%
  step_unknown(complaint_priority) %>%
  step_novel(community_board, unit) %>%
  step_other(community_board, unit, threshold = 0.02) %>%
  step_rm(complaint_category)

cox_wflow <- workflow() %>%
  add_recipe(rec_other) %>%
  add_model(cox_spec)

Switching to regularized model

cox_spec <- proportional_hazards() %>%
  set_engine("survival") %>%
  set_mode("censored regression")

rec_dummies <- recipe(disposition_surv ~ ., data = complaints_train) %>%
  step_unknown(complaint_priority) %>%
  step_novel(all_nominal_predictors()) %>%
  step_dummy(all_nominal_predictors()) %>%
  step_zv(all_predictors()) %>%
  step_normalize(all_numeric_predictors())

cox_wflow <- workflow() %>%
  add_recipe(rec_dummies) %>%
  add_model(cox_spec)

Switching to regularized model

coxnet_spec <- proportional_hazards(penalty = 0.1) %>%
  set_engine("glmnet") %>%
  set_mode("censored regression")

rec_dummies <- recipe(disposition_surv ~ ., data = complaints_train) %>%
  step_unknown(complaint_priority) %>%
  step_novel(all_nominal_predictors()) %>%
  step_dummy(all_nominal_predictors()) %>%
  step_zv(all_predictors()) %>%
  step_normalize(all_numeric_predictors())

coxnet_wflow <- workflow() %>%
  add_recipe(rec_dummies) %>%
  add_model(coxnet_spec)

But how much regularization do we need?

coxnet_spec <- proportional_hazards(
    penalty = 0.1
  ) %>%
  set_engine("glmnet") %>%
  set_mode("censored regression")

rec_dummies <- recipe(disposition_surv ~ ., data = complaints_train) %>%
  step_unknown(complaint_priority) %>%
  step_novel(all_nominal_predictors()) %>%
  step_dummy(all_nominal_predictors()) %>%
  step_zv(all_predictors()) %>%
  step_normalize(all_numeric_predictors())

coxnet_wflow <- workflow() %>%
  add_recipe(rec_dummies) %>%
  add_model(coxnet_spec)

But how much regularization do we need?

coxnet_spec <- proportional_hazards(
    penalty = tune()
  ) %>%
  set_engine("glmnet") %>%
  set_mode("censored regression")

rec_dummies <- recipe(disposition_surv ~ ., data = complaints_train) %>%
  step_unknown(complaint_priority) %>%
  step_novel(all_nominal_predictors()) %>%
  step_dummy(all_nominal_predictors()) %>%
  step_zv(all_predictors()) %>%
  step_normalize(all_numeric_predictors())

coxnet_wflow <- workflow() %>%
  add_recipe(rec_dummies) %>%
  add_model(coxnet_spec)

Resample 1 model

set.seed(1)
cox_res <- fit_resamples(
  cox_wflow,
  resamples = complaints_rset,
  metrics = survival_metrics,
  eval_time = evaluation_time_points
)

Resample 1 model

set.seed(1)
coxnet_res <- fit_resamples(
  coxnet_wflow,
  resamples = complaints_rset,
  metrics = survival_metrics,
  eval_time = evaluation_time_points
)

Resample 10 models

set.seed(1)
coxnet_res <- tune_grid(
  coxnet_wflow,
  resamples = complaints_rset,
  grid = 10,
  metrics = survival_metrics,
  eval_time = evaluation_time_points
)

Compare preformance

show_best(cox_res, metric = "brier_survival_integrated", n = 1)
#> # A tibble: 1 × 7
#>   .metric           .estimator .eval_time   mean     n std_err .config
#>   <chr>             <chr>           <dbl>  <dbl> <int>   <dbl> <chr>
#> 1 brier_survival_i… standard           NA 0.0552    10 0.00354 Prepro…

show_best(coxnet_res, metric = "brier_survival_integrated", n = 1)
#> # A tibble: 1 × 8
#>   penalty .metric   .estimator .eval_time   mean     n std_err .config
#>     <dbl> <chr>     <chr>           <dbl>  <dbl> <int>   <dbl> <chr>
#> 1 0.00750 brier_su… standard           NA 0.0531    10 0.00354 Prepro…

tidymodels for survival analysis

• Models:
  parametric, semi-parametric, and tree-based
• Predictions:
  survival time, survival probability, hazard, and linear predictor
• Metrics:
  concordance index, Brier score, integrated Brier score, AUC ROC

tidymodels for survival analysis

Learn more on tidymodels.org

• How long until building complaints are dispositioned? A survival analysis case study
• Dynamic Performance Metrics for Event Time Data
• Accounting for Censoring in Performance Metrics for Event Time Data

tidymodels.org
